Diamond Spinner wheel 100/75
€62.75
Tax included
KUL0126

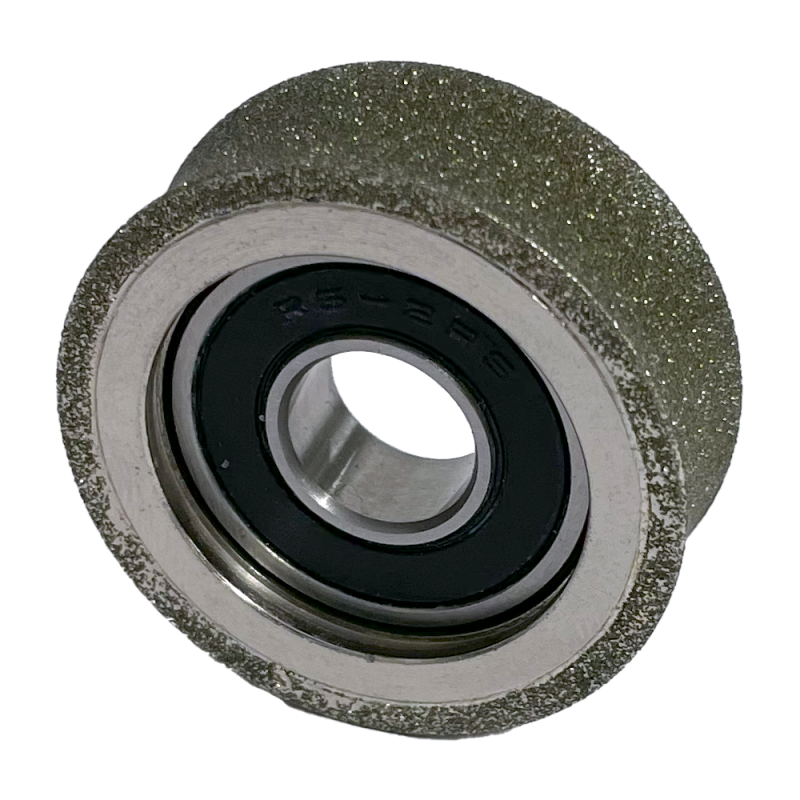

The Parduc® Diamond Spinner 100/75 is a precision diamond spinner designed for elliptical skate sharpening profiles where maximum stability is required. It is an excellent choice for professional ice hockey skate sharpening and for sharpeners looking for a stable, long-glide skating profile. The 100/75 combination creates a specialized elliptical grinding wheel profile, helping achieve a consistent and repeatable skate blade shape during sharpening. Like other Parduc® diamond spinners, it is designed for precise grinding wheel dressing for skate sharpening. The spinner is an original Parduc® part for Parduc skate sharpening machines and can also be used as an aftermarket spinner for Blackstone skate sharpeners. It is manufactured with industrial-grade diamond for accurate and durable grinding wheel shaping.
Technical specifications
- Model: Diamond Spinner 100/75
- Profile: Maximum stability elliptical
- Diameter: ~32 mm
- Thickness: ~11 mm
- Hole diameter: ~9.5 mm
- Compatibility: Parduc® skate sharpening machines and Blackstone machines
- Parduc®: Original part
- Blackstone: Aftermarket part, not an original Blackstone spare part
The correct diamond spinner helps maintain the grinding wheel and ensures consistent skate sharpening results.
Diamond spinners for professional skate sharpening
A diamond spinner is used to dress and shape the grinding wheel of a skate sharpening machine. The spinner profile is transferred to the grinding wheel, allowing the sharpener to create the required Radius of Hollow (RoH) or a specialized combination profile.
Regular wheel dressing keeps the grinding wheel accurate and exposes fresh abrasive material for consistent sharpening. Parduc® diamond spinners are available in a wide range of radii, flat profiles and combination profiles for ice hockey skate sharpening and figure skate sharpening.
The R-value determines the radius of the hollow: smaller radii create a deeper groove with more bite, while larger radii create a shallower groove with more glide. Available profiles: 80, 85, 88, 90, 92, 95 and 100, each in three versions: /50, /75 and /1 are designed for specialized sharpening requirements. The first number represents the width, while the second number represents the depth of hollow.
Parduc® Diamond Spinner Range
Diamond Spinner | Profile / Application | Diamond Spinner | Profile / Application |
R6,5 | Small radius for agility-focused profiles | R9,5 | Balance of control and performance |
R12 | Standard radius for hockey skates | R13 | Precise single-radius tuning |
R14,3 (9/16") | Common hockey sharpening radius | R17 | Balance of glide and agility |
R19 | Common hockey profile radius | R22 | Larger radius for speed-oriented profiles |
R24 | Excellent choice for defensemen | R25 | Stability-focused profile |
R27 | Combination of performance and glide | R29 | Large radius for extended skating |
R30 | Flatter feel with improved glide | R32 | Maximum stability and glide |
FLAT | Flat grinding for figure skates and glide testing | 80/50 | Dual-profile combination |
80/75 | Dual-profile combination | 80/1 | Specialized elliptical profile |
85/1 | Advanced technical profile | 88/1 | Multi-use elliptical profile |
90/1 | Technical performance profile | 92/1 | High-performance elliptical profile |
95/1 | Advanced long-radius profile | 100/1 | Long-radius professional setup |
Parduc® offers diamond spinners in multiple radii and combination profiles, allowing professional sharpeners to select the appropriate wheel profile for different skating requirements.
