Diamond Spinner wheel 100/1
€62.75
Tax included
KUL0127

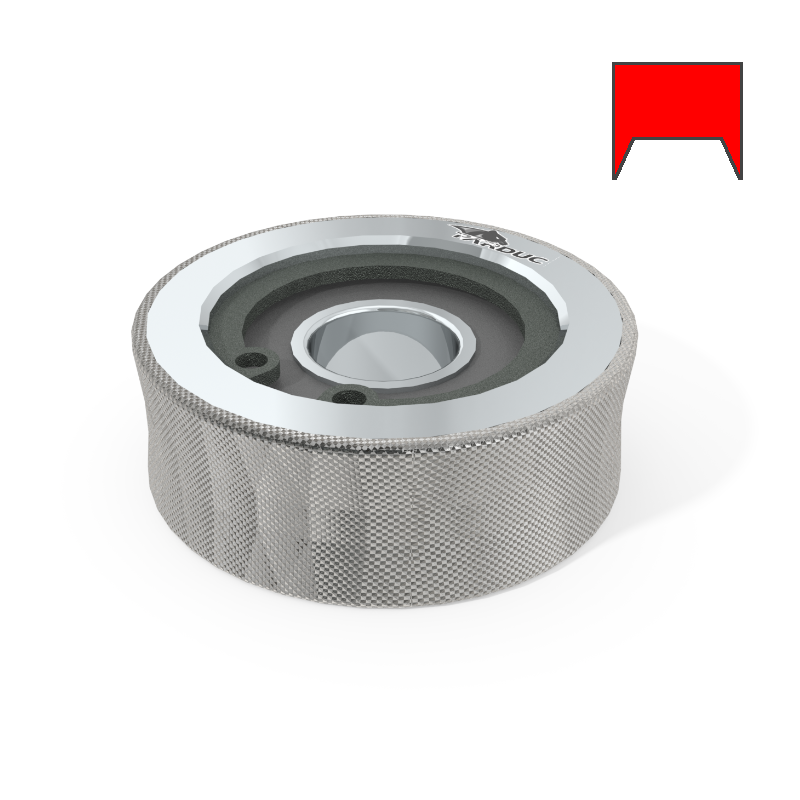

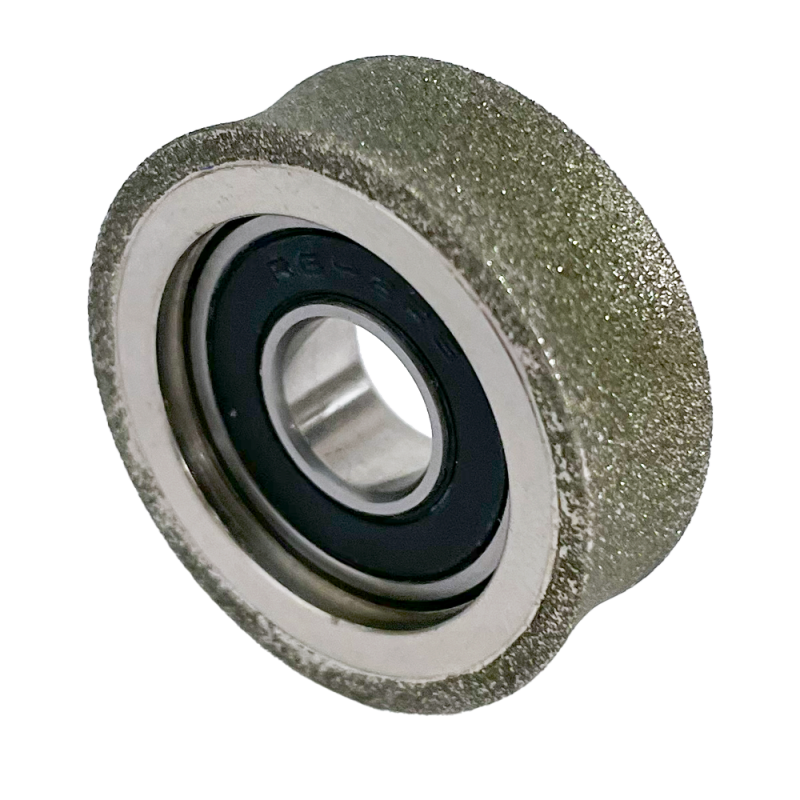

The Parduc® Diamond Spinner 100/1 is a precision diamond dressing tool for creating a long-radius professional grinding wheel profile in ice skate sharpening. It is designed for professional skate sharpening where accurate and consistent wheel dressing is essential for achieving a precise blade groove and reliable sharpening results.
Manufactured with industrial-grade diamond, the spinner provides precise and durable grinding wheel dressing. It is suitable for Parduc® skate sharpening machines and can also be used as an aftermarket spinner for Blackstone skate sharpeners.
Diamond spinner for Parduc skate sharpeners. This product can be used also as an aftermarket spinner on Blackstone skate sharpeners.
Technical specifications:
- Diameter: approx. 32 mm
- Thickness: approx. 11 mm
- Hole diameter: approx. 9.5 mm
- Profile: 100/1
- Compatible with Parduc® skate sharpening machines
- Aftermarket compatible with Blackstone machines
- Original Parduc® part for Parduc machines
The correct diamond spinner helps maintain the grinding wheel and ensures consistent skate sharpening results.
Diamond spinners for professional skate sharpening
A diamond spinner is used to dress and shape the grinding wheel of a skate sharpening machine. The spinner profile is transferred to the grinding wheel, allowing the sharpener to create the required Radius of Hollow (RoH) or a specialized combination profile.
Regular wheel dressing keeps the grinding wheel accurate and exposes fresh abrasive material for consistent sharpening. Parduc® diamond spinners are available in a wide range of radii, flat profiles and combination profiles for ice hockey skate sharpening and figure skate sharpening.
The R-value determines the radius of the hollow: smaller radii create a deeper groove with more bite, while larger radii create a shallower groove with more glide. Available profiles: 80, 85, 88, 90, 92, 95 and 100, each in three versions: /50, /75 and /1 are designed for specialized sharpening requirements. The first number represents the width, while the second number represents the depth of hollow.

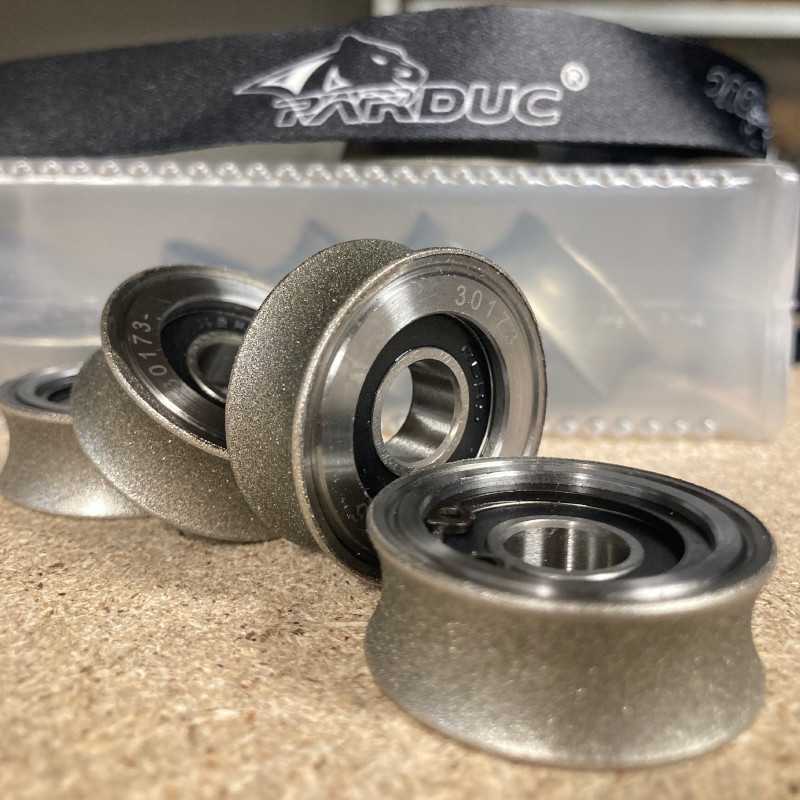

Parduc® Diamond Spinner Range
Diamond Spinner | Profile / Application | Diamond Spinner | Profile / Application |
R6,5 | Small radius for agility-focused profiles | R9,5 | Balance of control and performance |
R12 | Standard radius for hockey skates | R13 | Precise single-radius tuning |
R14,3 (9/16") | Common hockey sharpening radius | R17 | Balance of glide and agility |
R19 | Common hockey profile radius | R22 | Larger radius for speed-oriented profiles |
R24 | Excellent choice for defensemen | R25 | Stability-focused profile |
R27 | Combination of performance and glide | R29 | Large radius for extended skating |
R30 | Flatter feel with improved glide | R32 | Maximum stability and glide |
FLAT | Flat grinding for figure skates and glide testing | 80/50 | Dual-profile combination |
80/75 | Dual-profile combination | 80/1 | Specialized elliptical profile |
85/1 | Advanced technical profile | 88/1 | Multi-use elliptical profile |
90/1 | Technical performance profile | 92/1 | High-performance elliptical profile |
95/1 | Advanced long-radius profile | 100/1 | Long-radius professional setup |
Parduc® offers diamond spinners in multiple radii and combination profiles, allowing professional sharpeners to select the appropriate wheel profile for different skating requirements.
